This sensor is a cost-effective board used to measure the electrical activity of the heart. This electrical activity can be charted as an ECG or Electrocardiogram and output as an analog reading. ECGs can be extremely noisy, the AD8232 Single Lead Heart Rate Monitor acts as an op-amp to help obtain a clear signal from the PR and QT Intervals easily.

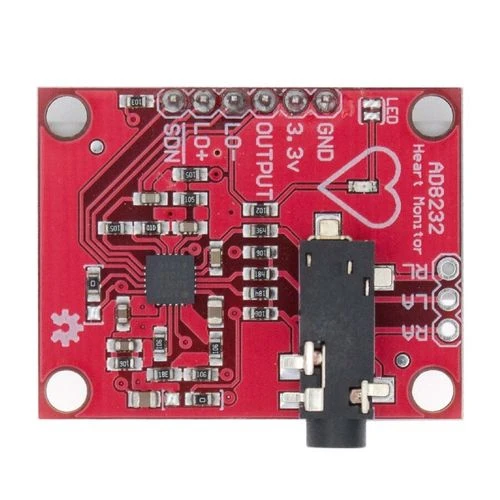

The AD8232 is an integrated signal conditioning block for ECG and other biopotential measurement applications. It is designed to extract, amplify, and filter small biopotential signals in the presence of noisy conditions, such as those created by motion or remote electrode placement. The AD8232 module breaks out nine connections from the IC that you can solder pins, wires, or other connectors to. SDN, LO+, LO-, OUTPUT, 3.3V, GND provide essential pins for operating this monitor with an Arduino or other development

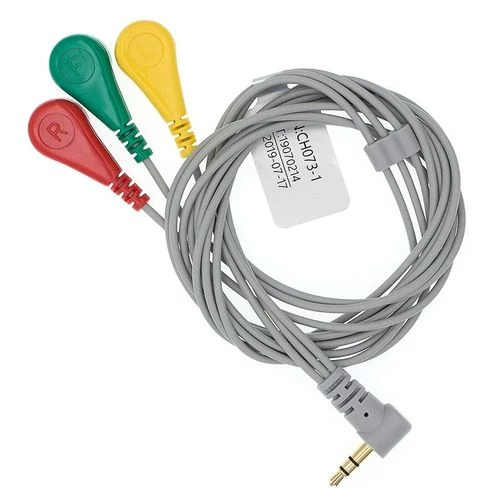

board. Also provided on this board are RA (Right Arm), LA (Left Arm), and RL (Right Leg) pins to attach and use your own custom sensors. Additionally, there is an LED indicator light that will pulsate to the rhythm of a heartbeat.
Note: This product is NOT a medical device and is not intended to be
used as such or as an accessory to such nor diagnose or treat any conditions.
Application:
- Fitness and sports heart rate monitoring
- Portable ECG
- Remote health monitor
- Game peripheral equipment
- Bioelectricity signal collection
Resources:
1. AD8232 ECG Module with Arduino
– Heart Rate Monitor
2. ECG Graph Monitoring with
AD8232 ECG Sensor & Arduino
3. Understating ECG Sensors and
How to Program one to Diagnose Various Medical Conditions
