2000W 220V AC SCR Electric Voltage Regulator Motor Speed Controller

(0) 0 Reviews 0 Orders 0 Wish listed

UGX22,000

Quantity :

Total price :

(Tax : )

Overview
Reviews

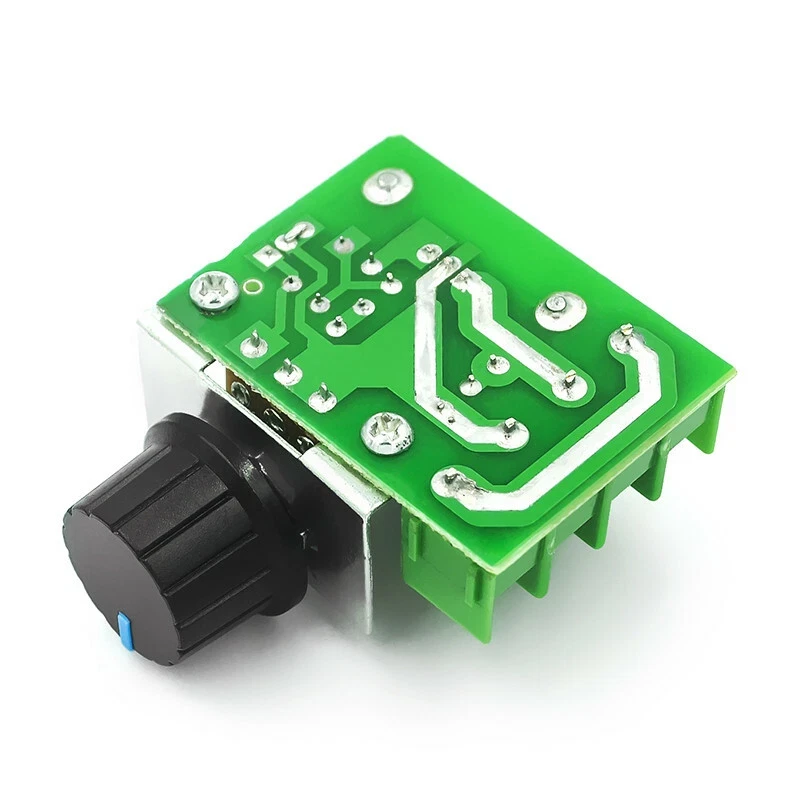

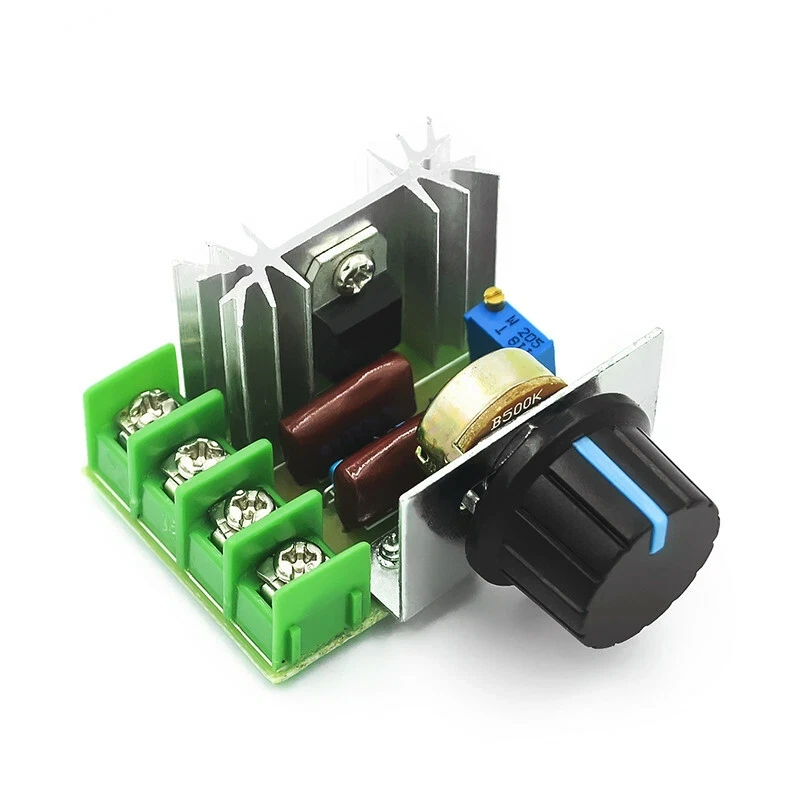

This is a high-power electronic voltage regulator, work power up to 2000W, generally can be used to adjust the voltage, adjust the light, adjust the motor speed, or adjust the temperature. In the case of access to the load, we can use it to adjust the AC voltage, adjust the range from AC50V to AC220V. It uses the FR-4 circuit board which can bear high temperatures, the maximum voltage and current is 1200V / 25A.

This regulator is equipped with a peak voltage absorption circuit that can effectively protect the high-power thyristor, making it longer life. It can be used in many occasions, such as electric furnace or water heater temperature adjustment, lighting adjustment, adjustment the speed of the motor, adjust the temperature of the soldering iron, because of the current which can reach 25A, which solves the electric furnace wire in the case of cooling resistance is too small caused by the problem. As long as the electric power is less than 2000W of household appliances, you can use it and do not need to add any components

Specifications:

· Resistance materials: metal and plastic

· Input voltage: AC 220V

· Voltage regulation: AC 50-220V

· Maximum power: 2000 W

· Dimension:48 x 56x 28 mm

Package Contents:

1 x AC 220V 2000W SCR Voltage Regulator
