The Raspberry Pi High Quality Camera is the latest camera accessory from Raspberry Pi. It offers higher resolution (12.3 megapixels, compared to 8 megapixels), and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the existing Camera Module v2, and is designed to work with interchangeable lenses in both C- and CS-mount form factors. Other lens form factors can be accommodated using third-party lens adapters.

Please note, the camera does not come with a lens. A lens is required! You can pick up a wide-angle or telephoto lens we have in stock.

The High Quality Camera provides an alternative to the Camera Module v2 for industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/or integration with specialist optics. It is compatible with all models of Raspberry Pi computer from Raspberry Pi 1 Model B onwards, using the latest software release from raspberry pi.

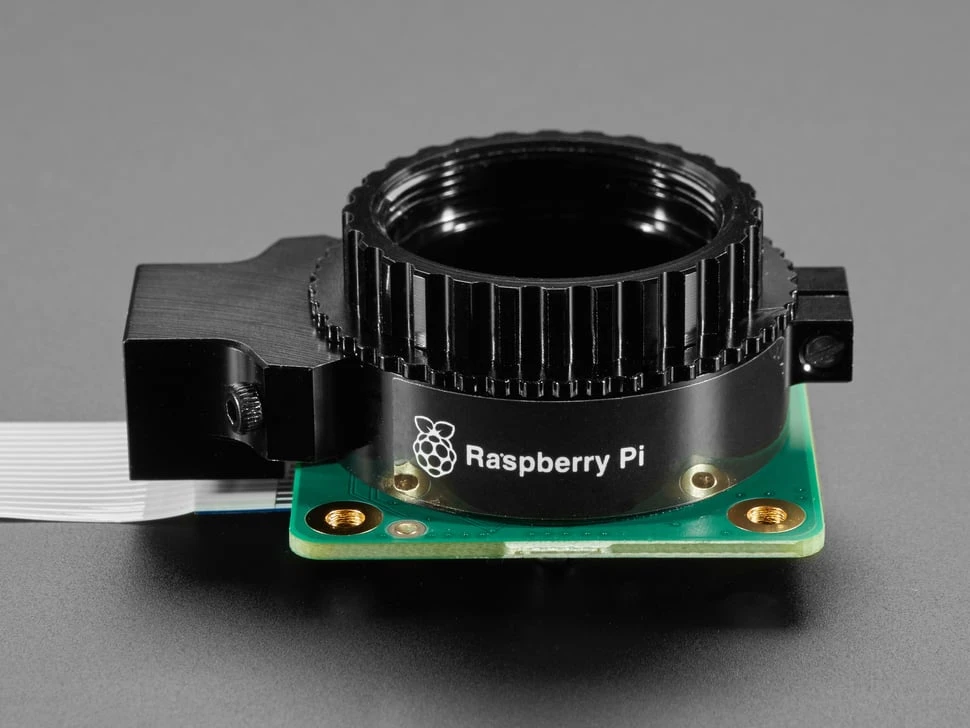

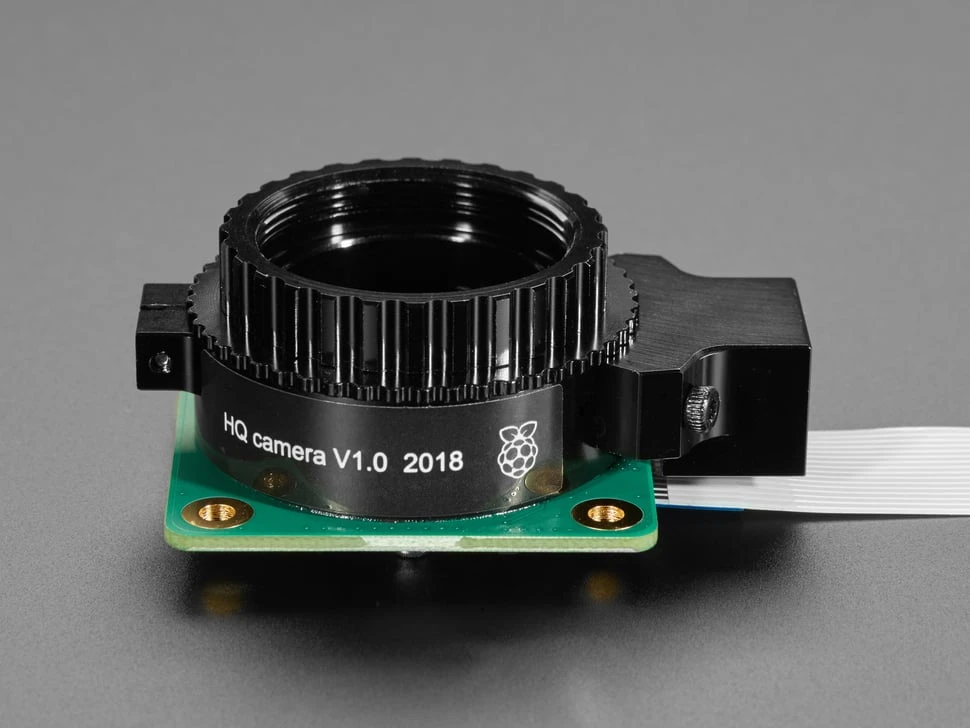

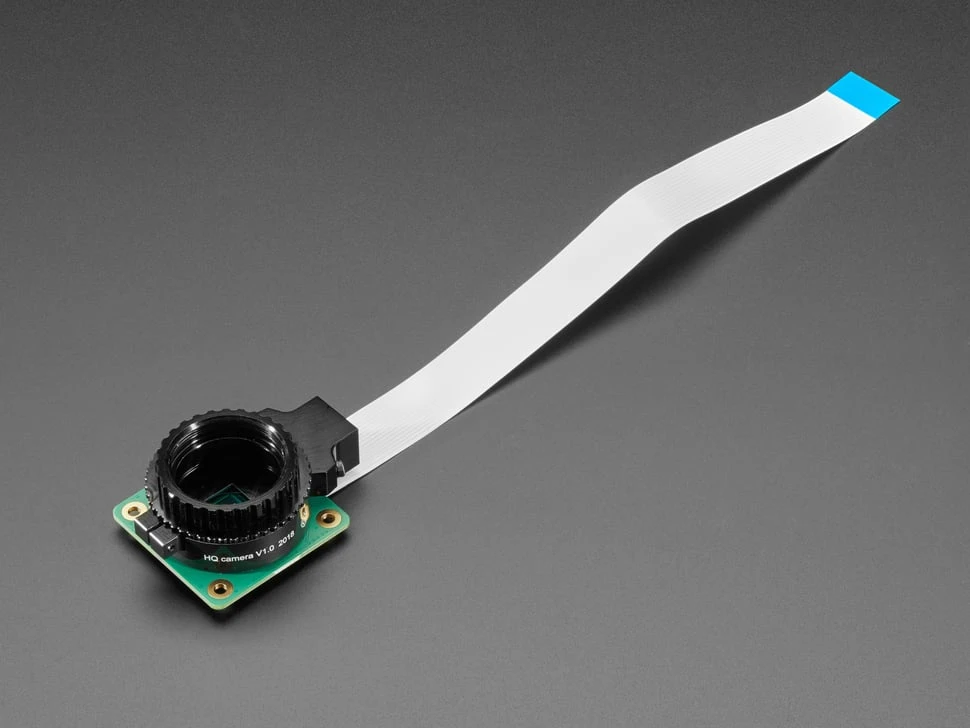

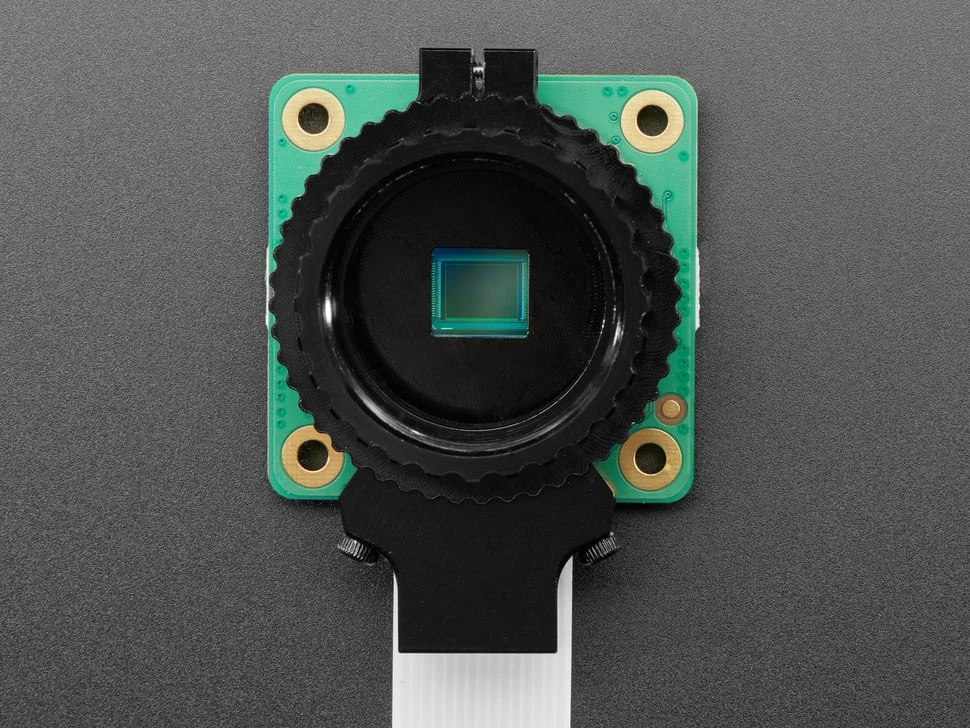

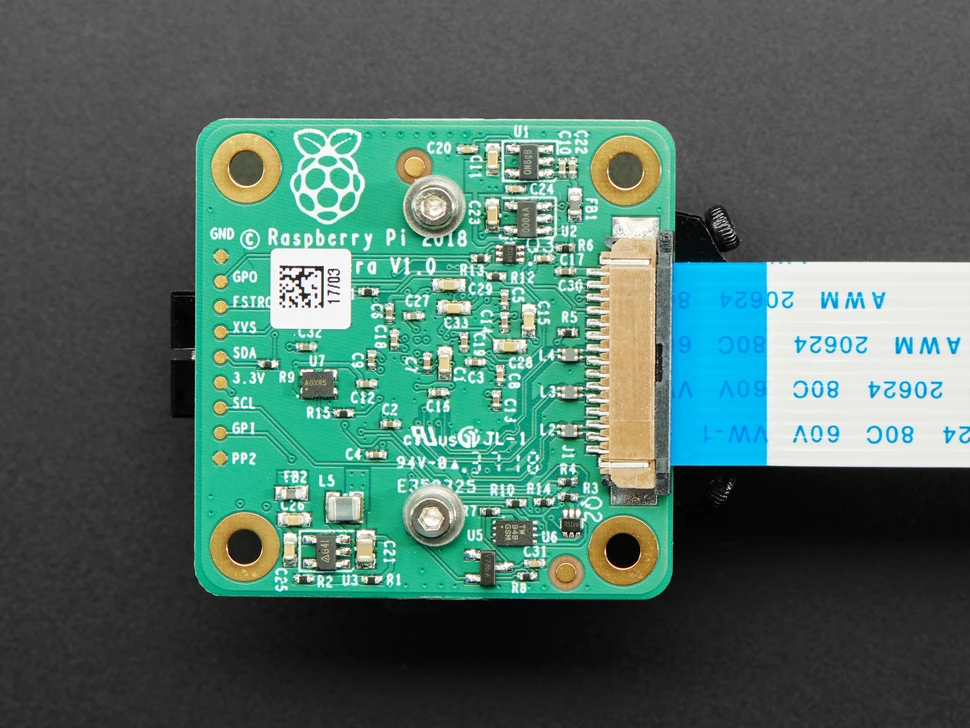

The package comprises a circuit board carrying a Sony IMX477 sensor, an FPC cable for connection to a Raspberry Pi computer, a milled aluminium lens mount with integrated tripod mount and focus adjustment ring, and a C- to CS-mount adapter.

It attaches to the Pi by way of one of the small sockets on the board's upper surface and uses the dedicated CSI port, designed especially for interfacing to cameras.

Specifications

Sony IMX477R stacked, back-illuminated sensor, 12.3 megapixels, 7.9 mm sensor diagonal, 1.55 μm × 1.55 μm pixel size

Output: RAW12/10/8

Back focus length of lens: 2.6mm–11.8mm (M12 Mount variant), 12.5mm–22.4mm (CS Mount variant)

Lens sensor format: 1/2.3” (7.9mm) or larger

IR cut filter: Integrated

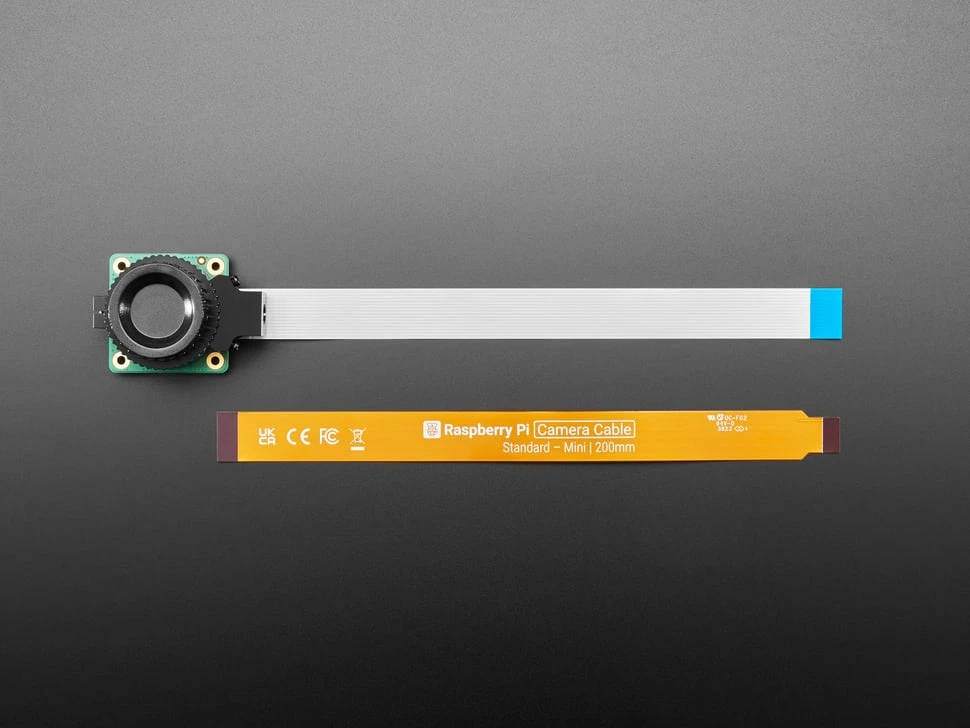

Ribbon cable length: 200 mm

Tripod mount: 1/4”-20

Video modes: 1080p50, 720p120

Included in Package:

1.    12MPX Sony IMX477 sensor Camera,

2.    FPC cable for connection to a Raspberry Pi computer
