GY--9960-3.3 Gesture sensor
(0) 0 Reviews 0 Orders 0 Wish listed
UGX16,000.00
Quantity :
Total price :
  (Tax : )
Out of stock

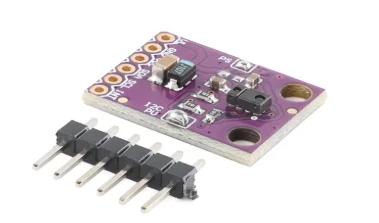

This is the  RGB and Gesture Sensor, a small board with a built in APDS-9960 sensor that offers ambient light and color measuring, proximity detection, and touchless gesture sensing. With this RGB and Gesture Sensor you will be able to control a computer, microcontroller, robot, and more with a simple swipe of your hand! This is, in fact, the same sensor that the Galaxy S5 uses and is probably one of the best gesture sensors on the market for the price.



The APDS-9960 is a serious little piece of hardware with built in UV and IR blocking filters, four separate diodes sensitive to different directions, and an I2C compatible interface. For your convenience we have broken out the following pins: VL (optional power to IR LED), GND (Ground), VCC (power to APDS-9960 sensor), SDA (I2C data), SCL (I2C clock), and INT (interrupt). Each APDS-9960 also has a detection range of 4 to 8 inches (10 to 20 cm).


Specifications:
Model: GY-APDS 9960-3.3
Using chip: APDS-9960
Power supply: 3.3v
Communication: IIC communication protocol
Size: 20mm * 15.3mm
