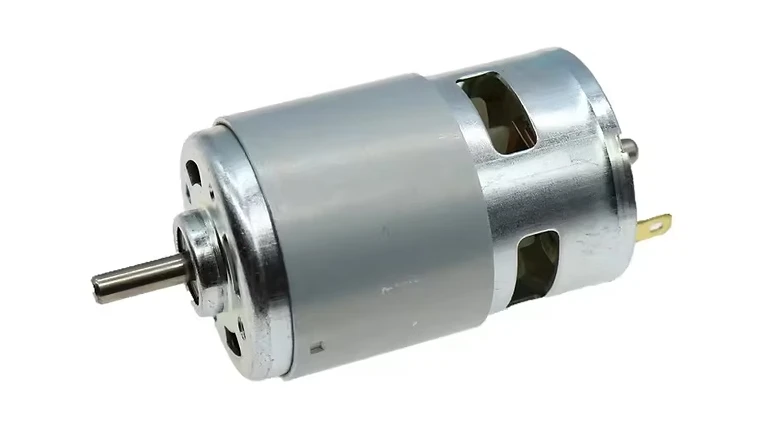

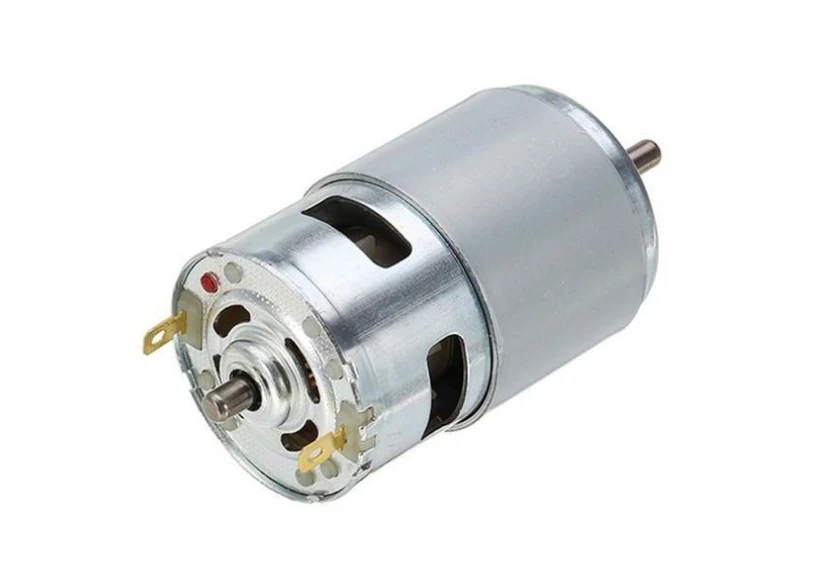

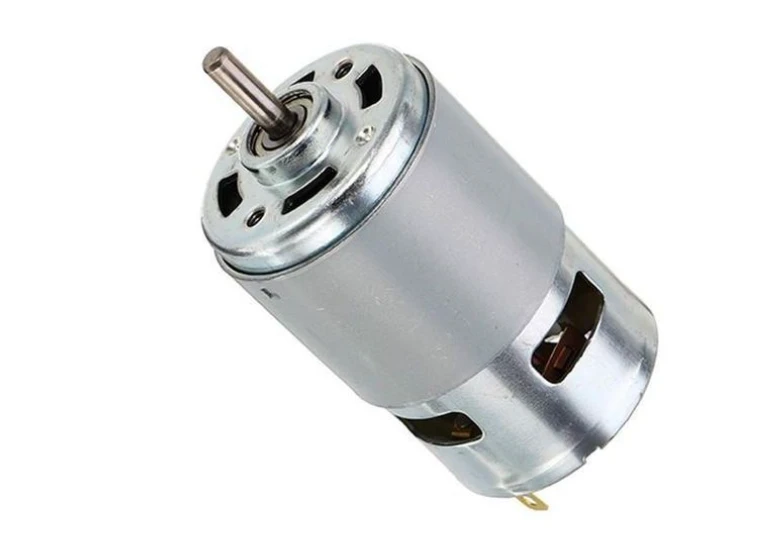

775 DC Motor 12-24Vdc 20000rpm
These
775 motors are high torque, high speed and are great for robotics, smart cars
and many other applications.
·

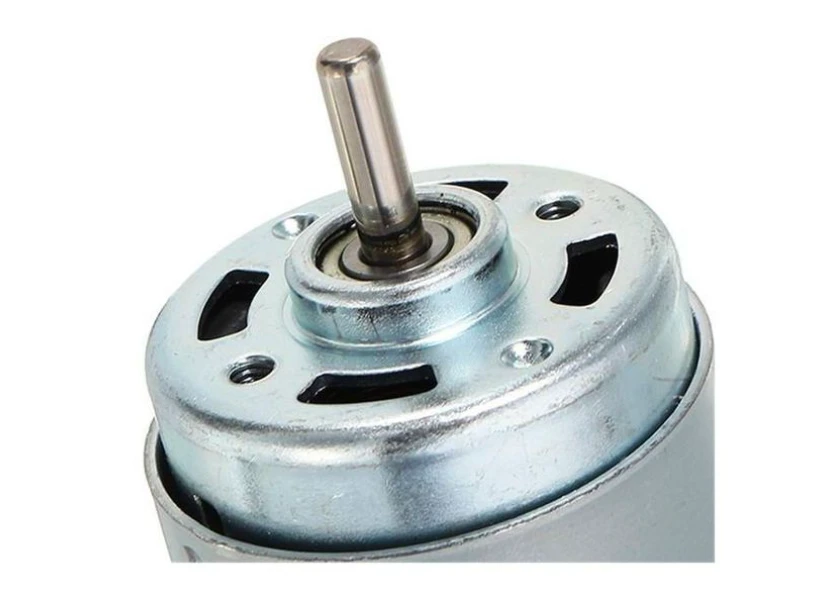

Double ball bearings at both
front and rear.
·
Large torque, high speed.
·
Low starting current, stable
and efficient.
·
Metal outer case, anti-rust and
durable.
·
Operating voltage is DC 12-24V.
Specification:
·
Item Type: 775 Motor
·
Measured Parameters (for
reference):
·
12V: No-load current: 0.92A,
Stall current: 2.6A, No load speed: 10000rpm, load speed: 8800rpm
·
24V: No-load current: 1.46A,
Stall current: 2.9A, No load speed: 20000rpm, load speed: 17600rpm
·
Motor Step Height: 4.5mm
·
Motor Step Diameter: 17.5mm
·
Output Shaft Length: 16mm
(Shaft length above the step level)
·
Shaft Diameter: 5mm
·
Motor Diameter: 42mm
·
Motor Length: 66.5mm
·
Motor Tail Step Height: Approx.
4.5mm
·
Motor Tail Shaft Length:
Approx. 6.5mm
·
Mounting Hole Pitch: Approx.
29mm
·
Mounting Screw: M4 Screw
Package
Includes:
·
1x 775 DC Motor
Datasheet:
